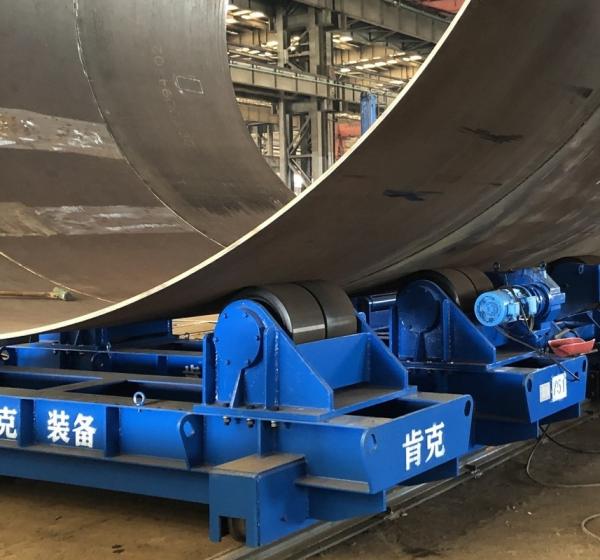

200t Anti-drifting Welding Rotator Welding Tank Turning Rollor Bolt Fixed Type

The welding roller bed is including 1drive rotator, 1idler rotator, control cabinet & wireless pendant controller.
Roller center distance could be manually adjusted by reserved screw bolt, so as to suitable for various work piece diameter.
The wheel of the welding roller bed is 90 durable hardness with high stress polyurethane cushion mounts to absorb shock loads and prevent gear box damage.
The operation is with a wilreless remote controller with interlocking reversing systems. wireless remote control range no less than 100m.
It can linkage control with other equipments such as welding manipulator,welding machine, gantry type welding machine and so on.

Brief introduction:

• Conventional welding rotator with safety working load 150t/set(1drive &1idler)
• suitable for tank diameter 1000mm~10000mm.

Description:

• The Conventional welding rotator is including 1drive rotator, 1idler rotator, control cabinet & pendant controller.
• The drive roller bed is driven by heavy duty AC motors which is designed according to internationally proven specifications to ensure constant speed with outer balance load of 15%.
• Roller center distance could be manually adjusted by reserved bolt, so as to suitable for various tank diameter.
• ​The AC Inverter comes with a remote control panel / operator pendant with interlocking reversing systems operating at temperatures in excess of 60%.
• The wheel of the welding rotator is PU coated on steel drum.
• The operation is with a remote controller.

Main technical parameters

Feature:

• Using cycloidal planetary gear reducer or worm reduction gear with dual motor driving mode.
• The 150t welding rotator have a strong and durable construction with creates a very high stability.
• Top-class electronic components, stepless adjustable speed of the driven part in CE marked.
• Tailor made suitable for tank diameter upto 10000mm, suitable for chemical machinery industry.
• It can linkage control with other equipments such as welding manipulator,welding machine, gantry type welding machine and so on.
• The favourable price performance ratio yields will ensure a quick payback of your investment
• We also provide tailor-made conventional welding rotators according to your special requirements.

Competitive advantage:

• VFD rotary speed control, improving the reliability of operation.
• Forging steel roller which can ensure a long time using
• With lubrication system.
• Accept testing before delivery.
• Accept special design and custom.

Exporting Packing

Packed with bubble wrap and plactic wrap.

WUXI KENKE mainly produces various welding auxiliary machines and special designed machines, with strong technical team and production capacity, products specifications, varieties, integration, serialization. KENKE also can make the special design, non-standard design according to users’ requirements. KENKE products have been widely used in wind power generation, boiler, petrochemical, metallurgy, machinery, shipbuilding and other industries, and exported to the Middle East, Southeast Asia, Europe, Australia and other countries.

KENKE adheres to the enterprise spirit of “Science and Technology Create Value, Honesty Create KENKE" and the enterprise style of “Down-to-Earth, Sincerity and Trustworthiness". Kenke Company has successively provided high-quality equipment for many users at domestic and abroad. Now KENKE is the governing unit of China Welding Association and the member unit of China Mechanical Engineering Society Pressure Vessel Branch.
