    22000 Lb Pipe Welding Positioner Manufacturer Supplier PPC Process Pipe Cell Equipment

    Ask Lasest Price
    Brand Name : KENKE
    Model Number : HBJ100
    Certification : CE, ISO9000
    Price : Please confirm with us
    Payment Terms : 30% TT in advance, 70% TT before the shipment
    Supply Ability : 10 sets month, 100 sets per year
    Delivery Time : 40 working days
    • Product Details
    • Company Profile

    22000 Lb Pipe Welding Positioner Manufacturer Supplier PPC Process Pipe Cell Equipment

    10T Welding Positioner Pipe Welding Flange Welding Tank Clading HBJ100 WELDING POSITIONER IS MAINLY COMPOSED OF WORKTABLE ROTATION DEVICE AND TILTING UNIT. Our floor welding turntable provide high precision rotational positioning of the workpiece regardless of size. They are proven to help improve weld quality, increase consistency and reduce rework.The welding turntable is a single axis rotating device. The table revolving in both clockwise or anti-clolckwise direction. In addition to welding, they can be used for other applications, such as grinding, flame cutting, painting, assembly and x-ray processes. If you require a special machine,we has the in-house capabilities to design & produce small and large diameter components with clamps and jig tooling for customers. The table can be in round shape or square, depending on customer's request. MAIN TECHNICAL PARAMETERS:
    MODELHBJ100
    QUANTITY1 SET
    RATING CAPACITY, ton10
    WORKTABLE DIAMETER, mmΦ2000
    TILTING CENTER HEIGHT1500
    ROTATION SPEED, r/min0.05~0.5
    ROTATION SPEED CONTROLSTEPLESS VARIABLE FREQUENCY CONTROL WITH AC INVERTER
    ROTATION MOTOR POWER, kw3
    TILTING ANGLE, °0~135
    TILTING MOTOR POWER, kw4
    TILTING SPEED, r/min0.2
    MAX ECCENTRICITY, mm200
    MAX GRAVITY CENTER, mm400
    REMOTE CONTROL PENDENTYES
    FOOT SWITCHYES

    PACKING FOR SEA TRANSPORT WITH WOODEN CASE

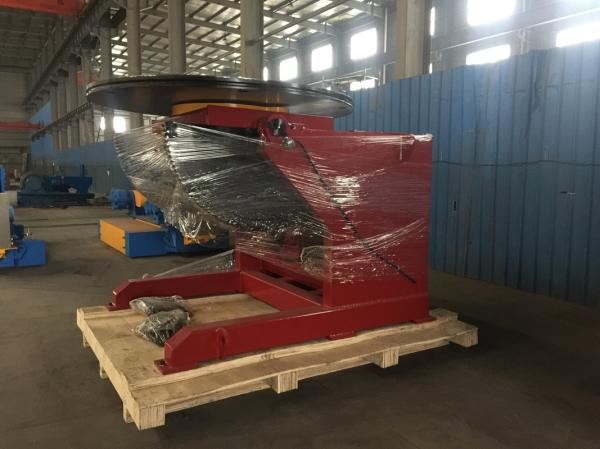

    22000 Lb Pipe Welding Positioner Manufacturer Supplier PPC Process Pipe Cell Equipment 22000 Lb Pipe Welding Positioner Manufacturer Supplier PPC Process Pipe Cell Equipment

    BY MEANS OF WORKTABLE TITING AND ROTATION, WORK-PIECE FIXED ON THE WORKTABLE CAN BE PLACED TO IDEAL POSITION FOR WELDING AND ASSEMBLY. THE TURNING DEVICE IS MAINLY USED TO DRIVE ROTARY MOVEMENT OF WORKPIECE DONE BY AC MOTOR TO DRIVE WORM REDUCER. THE OUTPUT PINION OF WORM GEAR REDUCER IS MESHE WITH THE SLEWING BEARING TO ROTATE. THE SLEWING BEARING ASSOCIATED WITH THE WORKTABLE TO BRING ALONG WORKTABLE ROTATION. SPEED OF WORKTABLE ROTATION IS CONTROLLED BY INVERTER, ATTAINING SATISFACTORY WELDING SPEED. IT IS OPTIONALLY EQUIPPED WITH FOOTSWITCH TO CONTROL THE ROTATION DIRECTION OF WORKTABLE. THE TILTING OF THE POSITIONER USES A MOTOR TO DRIVE TWIN-STAGE WORM REDUCER WHOSE OUTPUT PINION MESHING WITH SECTOR GEAR TO ACHIEVE. THE PINION WHICH DRIVES THE SECTOR GEAR IS FITTED ON THE LONG SHAFT. FLEXIBLE DRIVE CAN RESIST THE MOMENT FIBRILLATION OR OVER-LOAD, IN ORDER TO PROTECT MOTOR AND REDUCER INJURY FROM THE IMPACT LOAD. THE ELECTRIC CONTROL SYSTEM CONSISTS OF THE ELECTRIC CONTROL BOX AND REMOTE CONTROL PENDENT. THE MAINLY ELECTRIC COMPONENTS ARE FROM SIEMENS WHICH ARE RELIABLE PERFORMANCE. THE INVERTER USES YASKAWA SYSTEM, WHICH HAS THE CHARACTERISTICS OF LOW-NOISE, HIGH-PRECISION DIGITAL DISPLAY, OVERALL STABILITY OF HIGHT ANTI-JAMMING CAPABILITY.
